Circulation diffusers CDE
PURPOSE
1Size
2RAL colour
Performance
For this model the selection is made by an engineer using the manufacturer’s charts — add it to your request and we’ll send you the calculation.
Order code
CDE (RAL 9016) D160
€40.95
€40.95 × 1 pcs
Manufacturing: 10 working days
Description and manufacturing
PURPOSE
CDE series ceiling diffusers with adjustable airflow are designed for use in air conditioning, ventilation and heating systems and can be used in commercial, industrial and warehouse premises with ceiling heights of ≥ 2.6 metres.
DESIGN AND MATERIALS
These diffusers are adjustable: the air discharge direction can be changed from horizontal to vertical by means of adjustable cones.
Material: the diffusers are made of aluminium.
Standard colour: white RAL 9016; other RAL colours are available.
MANUFACTURE

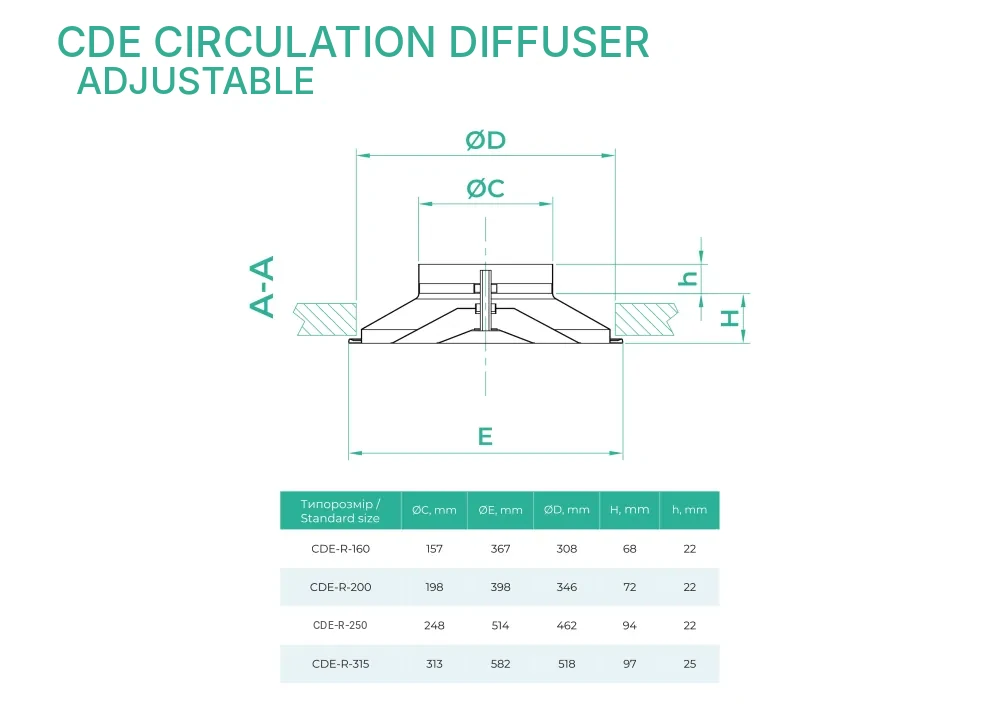

Diffusers of this series are available in standard diameters only: d160, d200, d250, d315.
ORDERING EXAMPLE
CDE-R-200 (RAL 9016) circular diffuser - connection diameter 198 mm, overall outer dimension 398 mm, colour - white.
SCOPE OF DELIVERY
Can be supplied with a VD plenum box made of galvanised steel (with side or axial connection to a circular or rectangular duct).
