Round ceiling diffuser PCR, paintable (plaster)
- modern minimalist design;
1How much air are we supplying?
2Size
3RAL colour
Performance
Section through the room at the diffuser. Velocity and temperature on the jet axis come from the calculation verified against the manufacturer's selection software; the surrounding field is an engineering model of the jet and return flow, not a full CFD analysis. Lines show air particle paths.
Temperature difference in the occupied zone ≈ 0.24 K — comfortable.
Order code
PCR (RAL 9016) D160-2
€218.88
€218.88 × 1 pcs
Manufacturing: 40 working days
Description and manufacturing
The PCR round diffuser with the Coandă effect is designed for air supply and extraction in supply and exhaust ventilation and air conditioning systems. The diffuser ensures even air distribution in the room and creates a comfortable indoor climate.
Unlike the CRL model, this design features a special internal channel geometry that creates the Coandă effect. The air stream spreads along the ceiling, is distributed evenly throughout the room and gradually mixes with the room air, providing a comfortable, draught-free indoor climate.
Thanks to its frameless design, the diffuser can be integrated into a ceiling or wall and then painted, giving the ventilation system a minimalist and aesthetic look.
PCR round diffusers are used in:
- apartments;
- private houses;
- offices;
- hotels;
- restaurants;
- shops;
- public spaces;
PCR round ceiling diffusers are made of high-quality plaster or composite material, so they can be painted together with the ceiling or wall. Their design ensures smooth air distribution without draughts.
The Click fixing system makes it easy to fit and remove the diffuser cover for ventilation system maintenance.
SPECIFICATIONS
Type: round ceiling diffuser
Installation type: concealed installation
Material: plaster / composite
Ventilation system type: supply / exhaust / air conditioning / air heating
Shape: round
Installation: ceiling / wall
Painting: painted together with the ceiling
Colour: white (paintable)
Connection diameter: 100, 125, 160, 160-2 (two plates), 200, 200-2 (two plates) mm.
Advantages of the PCR diffuser:
- modern minimalist design;
- frameless construction;
- can be painted to match the ceiling;
- even air distribution;
- simple installation system;
- Click fixing system.

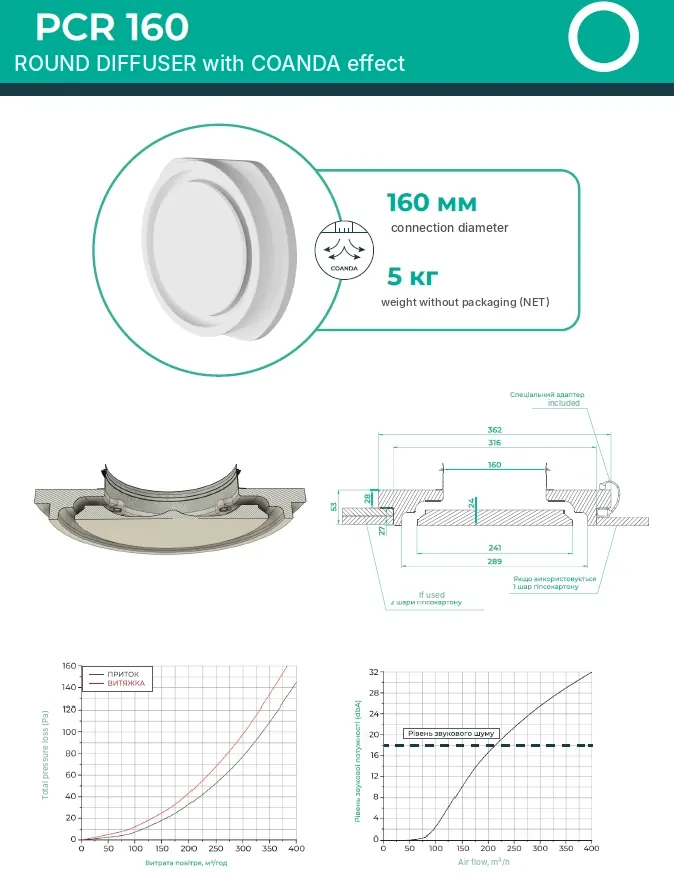

PCR-160 plaster diffuser – round diffuser for connection to a Ø160 mm duct.
