Round ceiling diffuser CRL, paintable (plaster)
- modern minimalist design;
1How much air are we supplying?
2Size
3RAL colour
Performance
Section through the room at the diffuser. Velocity and temperature on the jet axis come from the calculation verified against the manufacturer's selection software; the surrounding field is an engineering model of the jet and return flow, not a full CFD analysis. Lines show air particle paths.
Temperature difference in the occupied zone ≈ 0.77 K — comfortable.
• Outlet velocity is too high — it will be noisy. Choose a larger size or use several diffusers.
• There will be a draught near people. Increase the size or the number of diffusers, or choose a swirl type.
• High resistance: the fan will need more pressure. Increase the size.
Order code
CRL (RAL 9016) D125
€92.86
€92.86 × 1 pcs
Manufacturing: 8 working days
Description and manufacturing
The CRL round diffuser is designed for air supply and extraction in supply and exhaust ventilation and air conditioning systems. The diffuser ensures even air distribution in the room and creates a comfortable indoor climate.
Thanks to its frameless design, the diffuser can be integrated into a ceiling or wall and then painted, giving the ventilation system a minimalist and aesthetic look.
CRL round diffusers are used in:
- apartments;
- private houses;
- offices;
- hotels;
- restaurants;
- shops;
- public spaces;
The CRL diffuser is made of high-quality plaster or composite material, so it can be painted together with the ceiling or wall. Its design ensures smooth air distribution without draughts.
The Click fixing system makes it easy to fit and remove the diffuser cover for ventilation system maintenance.

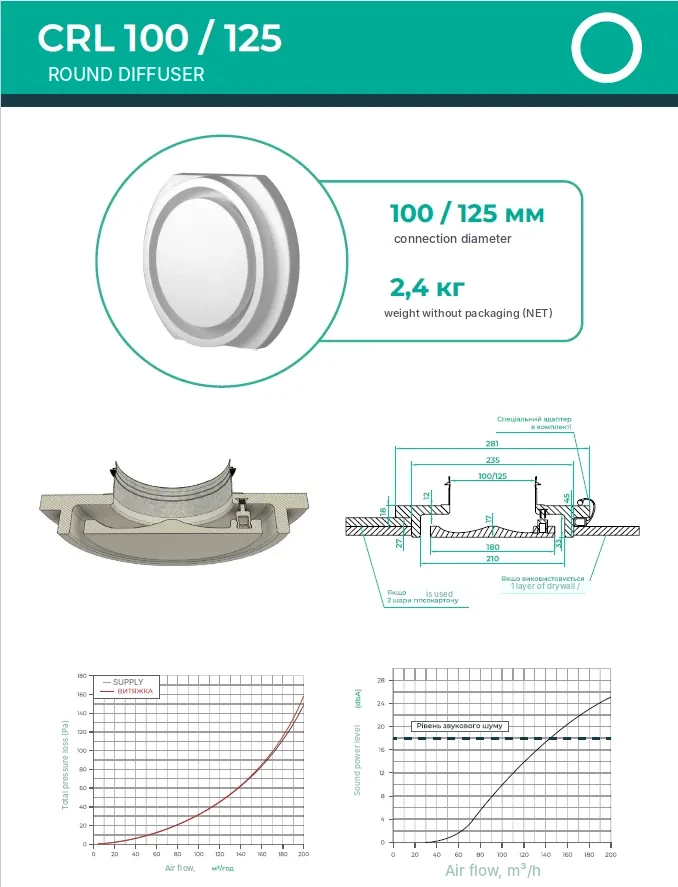

SPECIFICATIONS
Type: round ceiling diffuser
Installation type: concealed installation
Material: plaster / composite
Ventilation system type: supply / exhaust / air conditioning / air heating
Shape: round
Installation: ceiling / wall
Painting: painted together with the ceiling
Colour: white (paintable)
Connection diameter: 100 mm, 125 mm.
Advantages of the CRL diffuser
- modern minimalist design;
- frameless construction;
- can be painted to match the ceiling;
- even air distribution;
- simple installation system;
- Click fixing system.
CRL-100 plaster diffuser – round diffuser for connection to a Ø100 mm duct.
