Concealed linear slot diffuser CLT (with integrated track lighting)

CLT concealed linear slot diffusers with integrated track lighting are used in projects with high aesthetic requirements where technical performance must be maintained. They are used in supply and exhaust ventilation and in any type of air conditioning system. Designed for installation in plasterboard ceilings, they provide an excellent aesthetic finish.

They allow a continuous line with active and inactive sections to be formed, creating a minimalist design. These diffusers can be used at installation heights of up to 4 metres.

The diffuser consists of a high-quality aluminium body with horizontal slots; depending on the model, there are 1 to 4 slots, each 50 mm wide. An inner aluminium slat directs the air into the room. The diffuser frame has ribs for better bonding of the filler compound to the plasterboard.

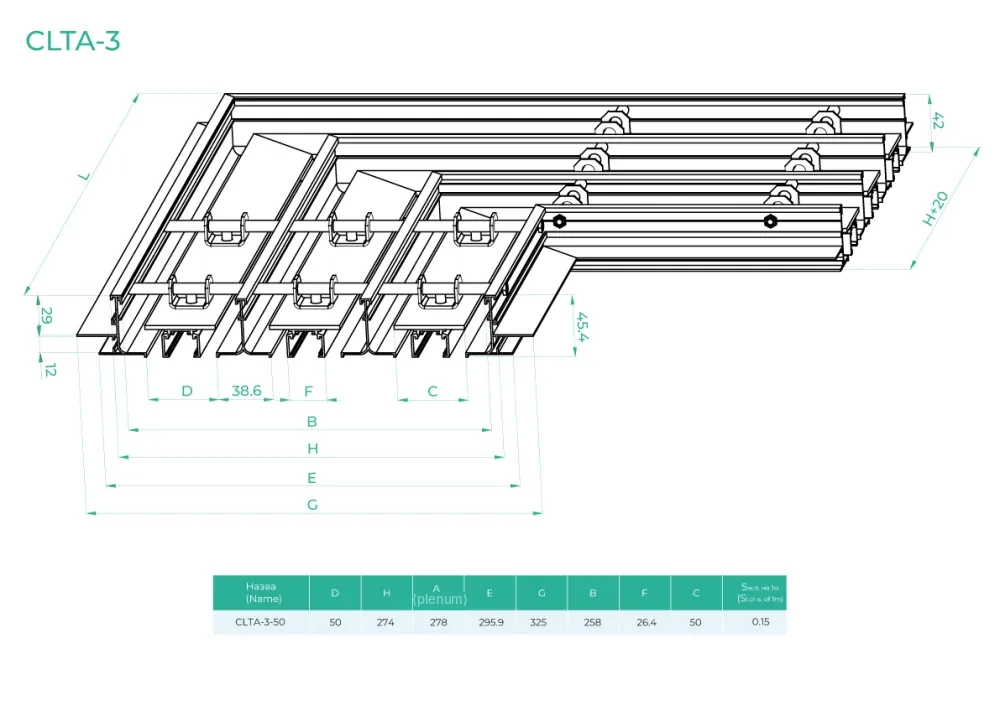

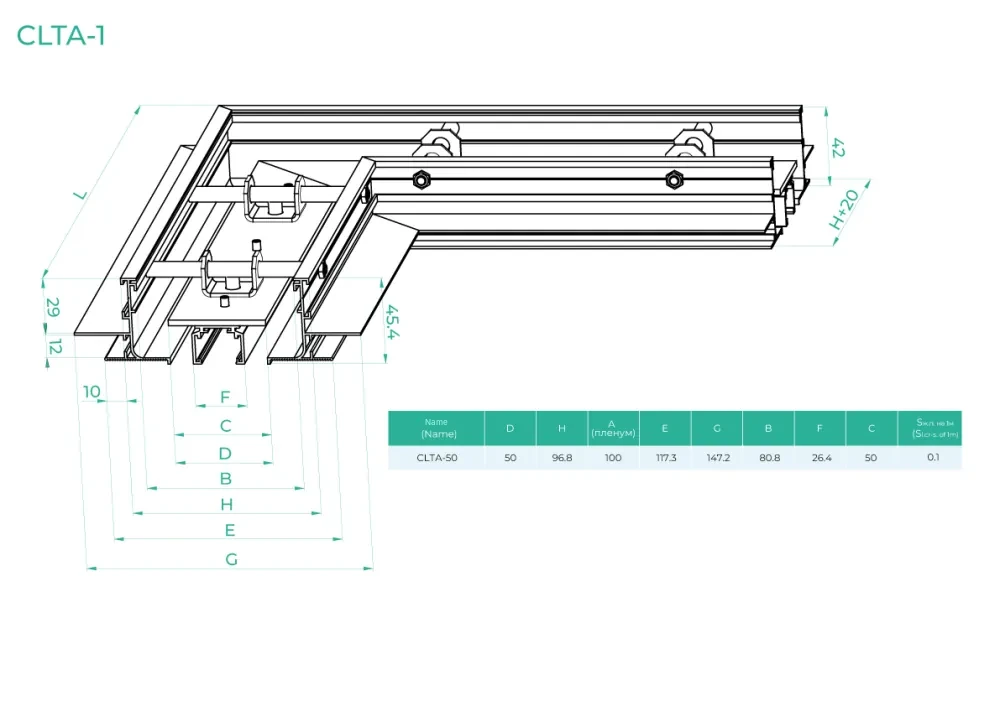

The number of slots and the length of the diffuser are selected individually to suit your airflow requirements; however, a single continuous element must not exceed 3 m (preferably up to 2 m), and a CLT corner element must be between 150 and 500 mm. The standard length of a corner element is 500 mm (measured along the long, outer side), and the standard angle is 90° (not stated in the designation); any other angle is given in the product name.

Several elements can be joined together, so they can be installed in continuous lines of practically any length, even around the entire perimeter of a room.

The diffusers are finished with a decorative protective powder coating. The standard colour is white (RAL 9016), but on the Customer's request the body and blades can be painted in other colours from the RAL palette.

Diffusers of this series have a standard slot width of 50 mm and can be manufactured in any length L in 50 mm increments from 300 to 3000 mm.

Specifications

Diffuser type: slot/linear

Installation: concealed in plasterboard

Ventilation system type: supply/exhaust/air conditioning/air heating

Material: aluminium

Finish: powder coating

Colour: RAL 9016 / other RAL colour

Number of slots: 1/2/3/4

Slot width: 50 mm

Length: 300–3000 mm

Air adjustment: yes

Airflow pattern: one-way or two-way

Maximum installation height: up to 4 m

Busbar for magnetic track luminaires: Yes

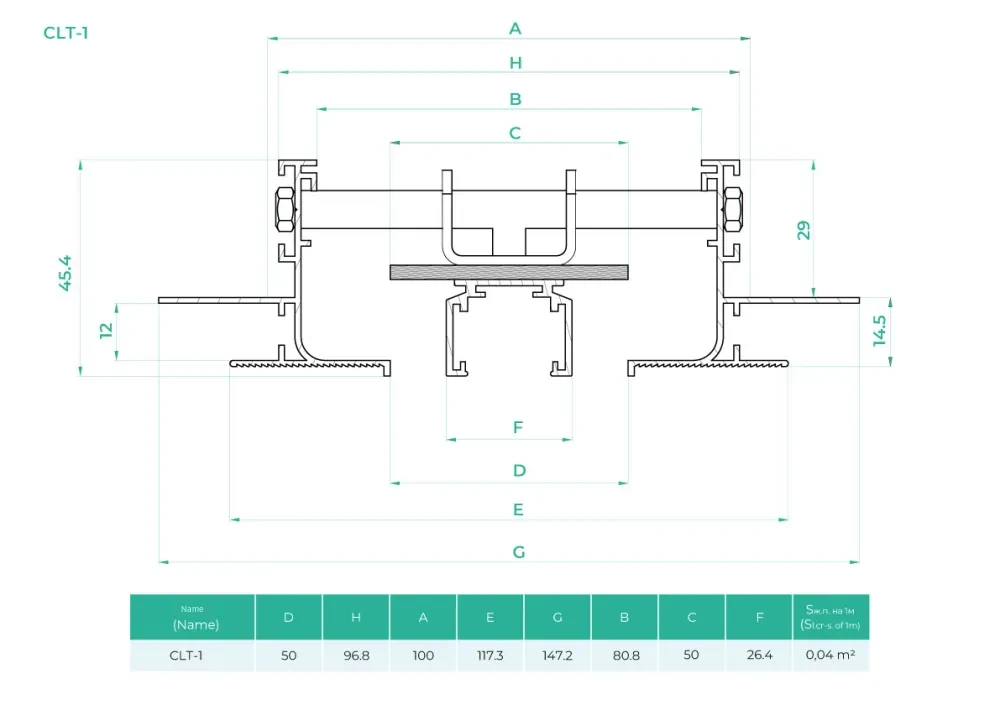

CLT-3-50-2 (RAL 9016/9005) L=500 – 3 – number of slots, 50 – slot width 50 mm, 2 – with 2 side flanges (closed ends). Used for elements up to 3 metres. Frame colour – white, slat – black.

*1 - one end closed, the other open (joining plates for connecting slot diffusers to each other are included). Used for elements over 3 metres.

*0 - no side flanges (used as an intermediate element when installing several slot diffusers in one line). Used for elements over 6 metres.

CLT-45°-2-50-1 (RAL 9005M/9005M) L=500 - 45° - angle, 2 - number of slots, 50 - slot width, 1 - number of end caps (guide slats for centring when joining to subsequent elements are included), RAL 9005M - body colour (matt black), 9005M - deflector slat colour (matt black), L=500 - fitting length of the diffuser.
